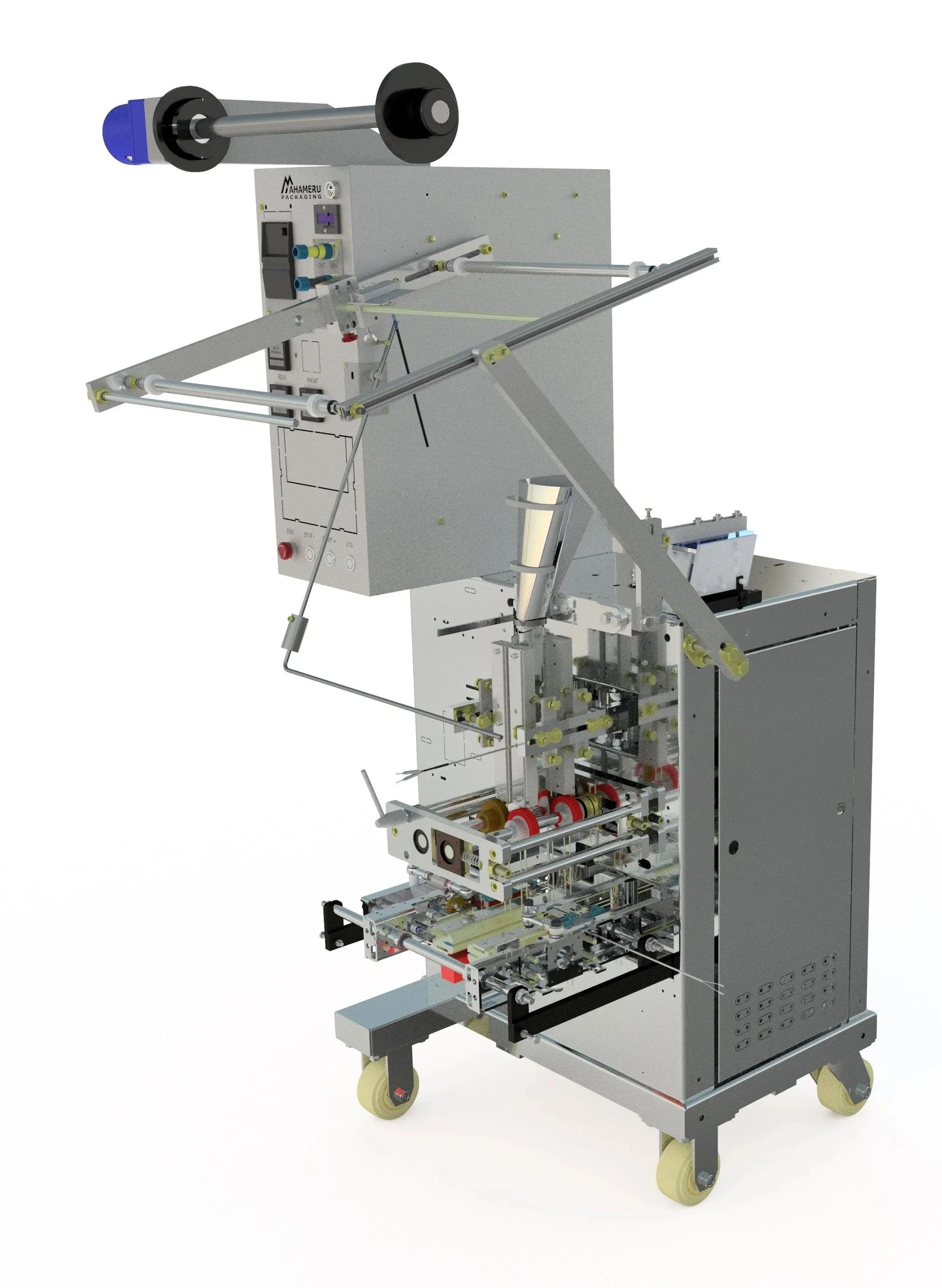

Automated packaging machine with rollers, conveyor, and mechanical arms for sealing or filling packages.

Model MP04

Economic 4side/3Side

Automatic Vertical Form Fill Seal Machine

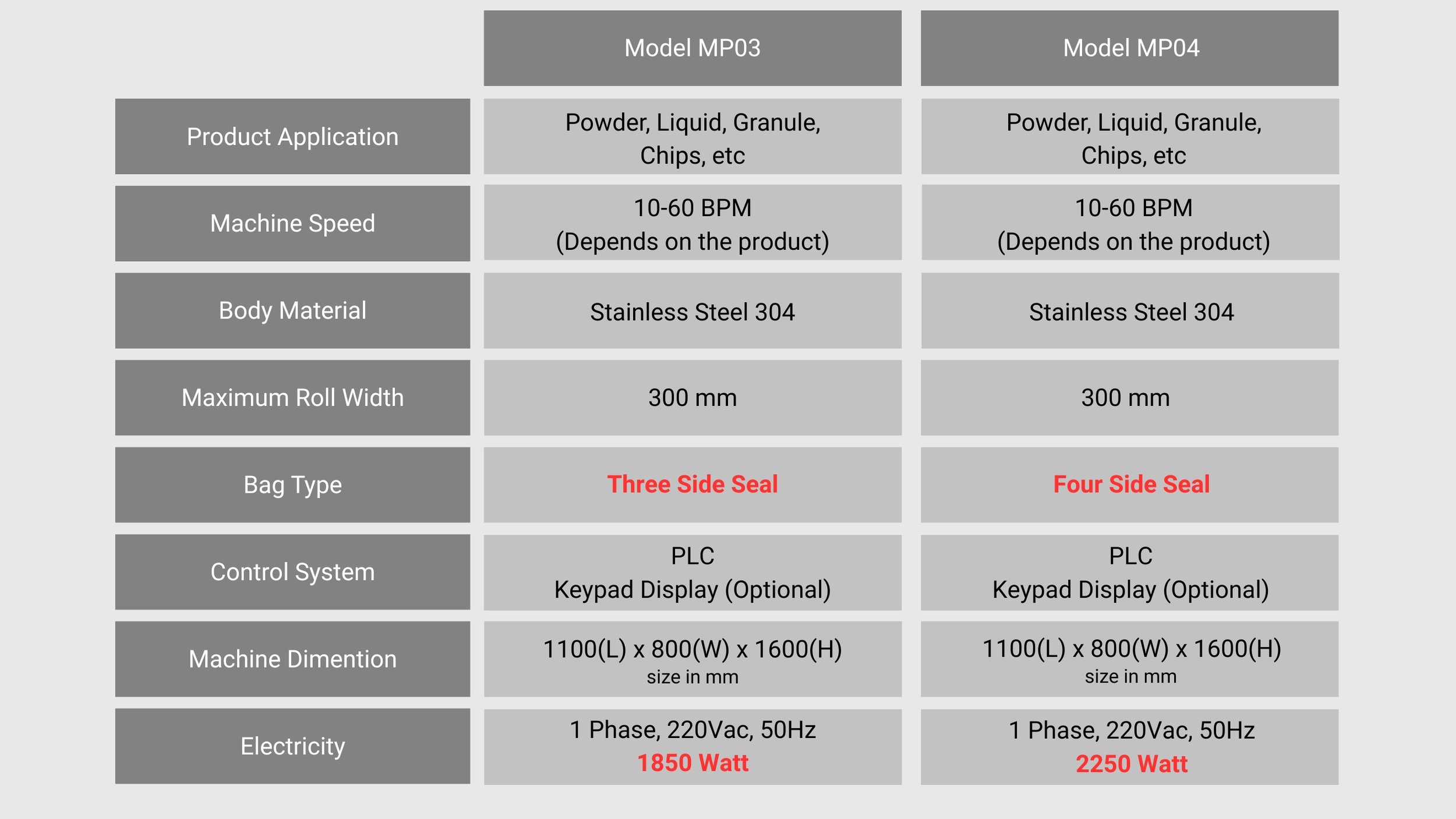

Comparison chart of two models of industrial sealing machines, Model MP03 and Model MP04. Both machines have the same application for powder, liquid, granule, and chips. They operate at 10-60 BPM depending on the product and are made of stainless steel 304. Each has a maximum roll width of 300 mm, with MP03 featuring a three-side seal and MP04 featuring a four-side seal. Both use PLC control systems, with optional keypad display, and have dimensions of 1100 mm length, 800 mm width, and 1600 mm height. MP03 uses 1850 watts of power, while MP04 uses 2250 watts, both with 220V power supply at 50Hz.

The packaging machine offers a versatile solution for various product dimensions.

Specifications

Assorted candies, snack bowls with chips and pretzels, bags of dried beans and legumes, sauces, flour, metal nuts and bolts.

The machine is designed to handle diverse product sizes and shapes with ease. Its adaptability ensures that various goods can be packed, optimizing operational flexibility.

Product Application

Automated industrial food packaging machine with hopper and mechanical arms.
Automated packaging machine with mechanical arms and rollers, on four wheels, used for sealing or labeling products.
Industrial filling machine with a large hopper, conveyor, and control panel, used in manufacturing or packaging processes.
Industrial automated machine with metallic components and control panel on a white background.
Industrial packaging or manufacturing machine with metal components, conveyor belt, and control panel.
Industrial machine with metallic parts and rollers, mounted on wheels, used for manufacturing or packaging processes.
